990 NotReadyReasonCode Configuration
Definition
This report shows the current configuration of the NotReadyReasonCode categories and the NotReadyReasonCodes associated with them. Additionally this report shows which NotReadyReasonCode categories belong to the top 3 and which categories are configured as productive.
Main data sources: Reason_Code, t_Reason_Code_Mapping and t_Reason_Code_Category

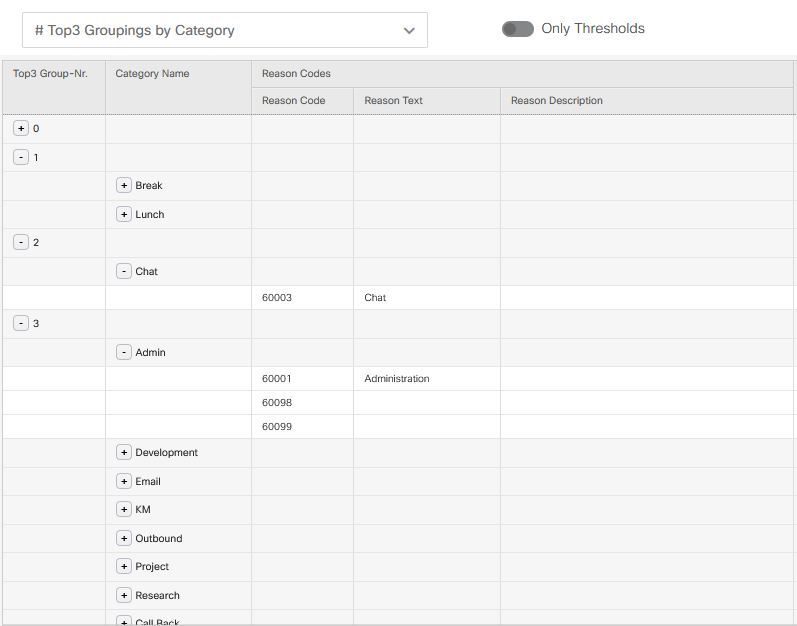

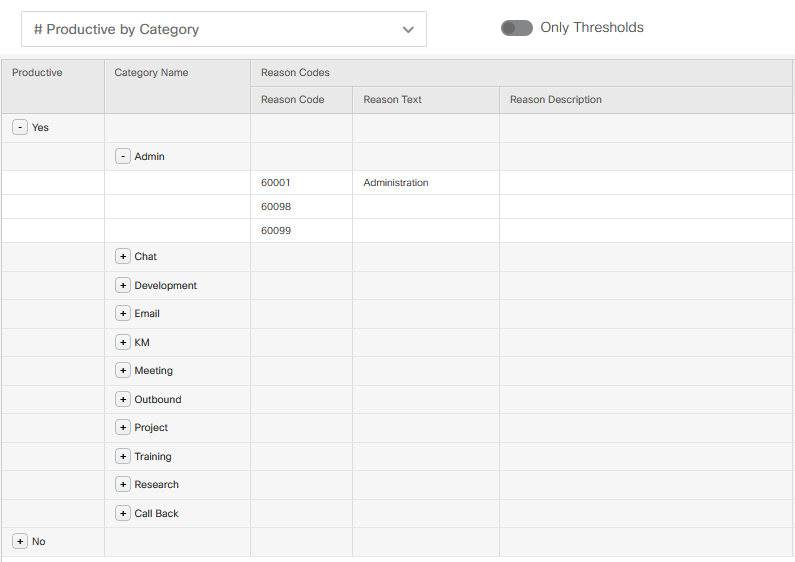

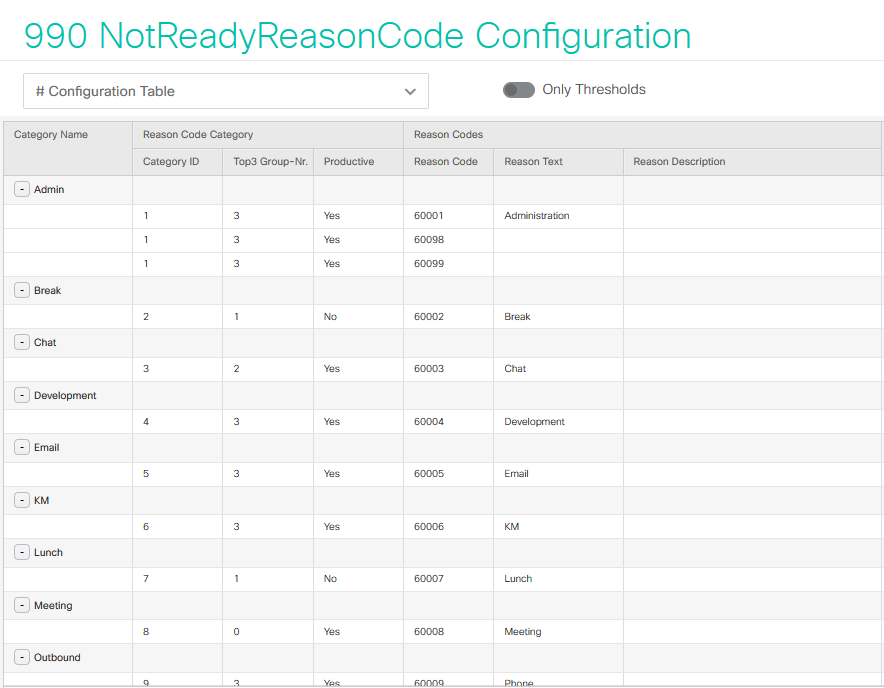

Screenshots
Field description
| Field name | Description |
|---|---|
| CategoryID | ID of the NotReadyReason category (corresponds to CodeID 1 to 20, or 0 for Codes without assignment to a category) |
| CategoryName | Name of the NotReadyReason category ("Undefined" for Codes without assignment to a category) |
| Top3 | Number of the 3 possible groupings of ReasonCode categories, which will be displayed in the RealTime pie charts (1, 2, 3 or 0 for all others) |
| Productive | "Yes" if the Not Ready time of this ReasonCode category is productive (e.g. back office), "No" if non-productive (e.g. break) |
| ReasonCode | Number of the assigned ReasonCode |
| ReasonText | Name of the assigned ReasonCode |
| ReasonDescription | Description of the assigned ReasonCode |
